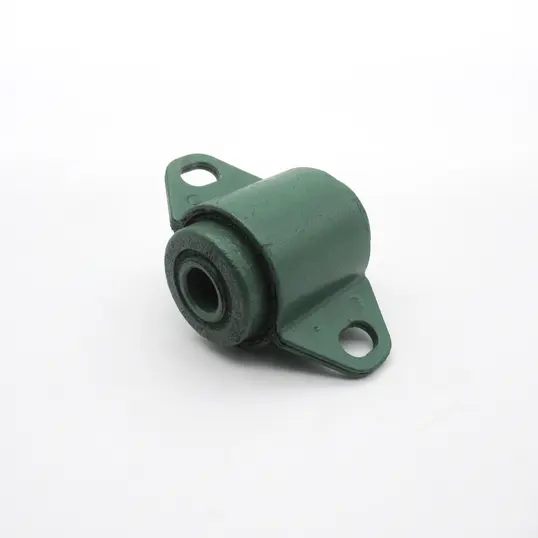

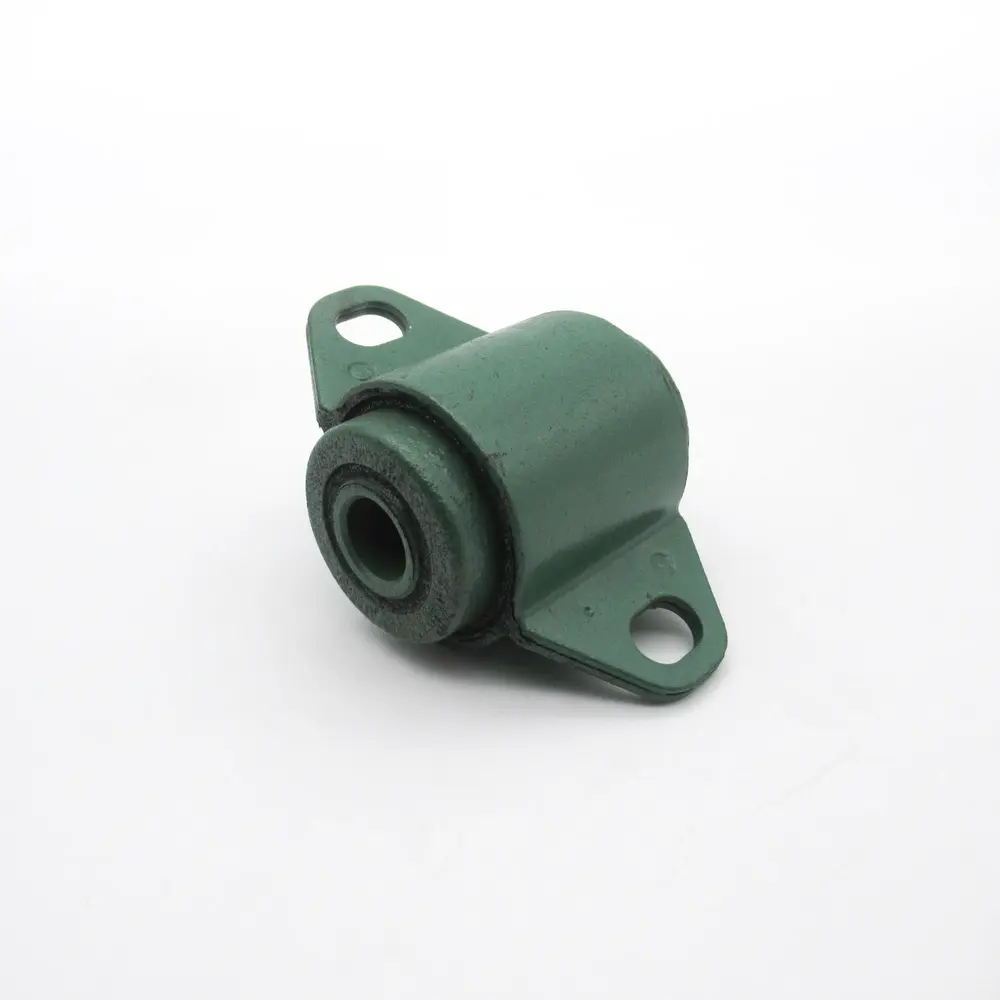

MOUNT RUBBER SUBFRAME MGF>02

Front & Rear Subrame & Fixings

Part Number

FAM9525

Brand

Xpart

Warranty

12 Months

Rubber subframe mount to be used with KYG000260 135mm bolt. Until the introduction of MGF Trophy, rubber subframe mounts of part number FAM9525 were used along with a 135mm bolt (KYG000260) and flanged securing nut (FN114041). Inherently, these failed over time and contributed to sloppy handling. Hollow subframe mounts (KGE000110) were then fitted to the MGF Trophy and all TF models providing a more stable ride and reliability. A shorter 105mm bolt (KYG000110) is needed to fit these subframe mounts. It is preferable for owners of MGFs to fit KGE000110 subframe mounts with KYG000110 105mm bolt in replacement of the rubber mounts which are prone to deteriorate over time. If you wish to replace your rubber mounts with rubber mounts, be sure to use the 135mm bolt KYG000260.

£28.75

This product's fitting details:

MGF/TF - Front & Rear Subrame & Fixings: MGF from WD26659, not Trophy

This product is compatible with the following:

MG > MGF & TF

These are cross reference part codes:

NAM4131
