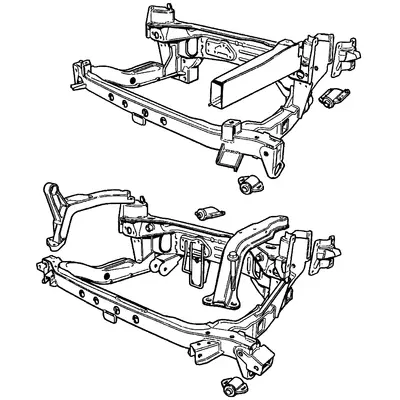

The front and rear subframes on the MGF and MG TF are the structural aluminium assemblies that carry the entire suspension and, on the rear subframe, the engine and gearbox. They are among the most significant structural components on the car, their condition directly determines suspension geometry accuracy, ride quality, and the car's handling behaviour. Because the MGF and MG TF use fundamentally different rear suspension systems, their subframes are entirely different castings designed around different mounting locations, load paths, and compliance characteristics.
MGF vs MG TF, Rubber vs Solid Mounts
The most fundamental difference in subframe specification across the range is the mounting type, how the subframe attaches to the bodyshell. Standard MGF cars use rubber mountings at both front and rear subframes, providing isolation from road noise and vibration and contributing to the MGF's refined ride quality, at the cost of some compliance under cornering load. The MGF Trophy and all MG TFs use solid mountings instead, rigid mountings that eliminate the compliance and sharpen the car's dynamic responses, at the cost of increased noise and vibration transmission into the cabin. The solid-mount arrangement was first introduced on the MGF Trophy as part of its focused chassis specification, proved its worth in dynamic testing, and was adopted across the entire MG TF range. This shared specification between MGF Trophy and all MG TFs creates a useful parts commonality: the solid front and rear subframe mounts, and the associated mounting bolts, are common between Trophy MGFs and MG TFs.
Ordering by Mounting Type, Critical Detail
When ordering subframe mountings, confirm both the model AND the specification: a standard MGF (rubber front and rear mounts) and an MGF Trophy (solid front and rear mounts) use different hardware despite being the same model. A further catalogue distinction applies to MGFs built before a specific production breakpoint (VIN WD26658/WD26659): early MGF front mountings can be replaced with later mountings, but only when the rear mountings are also updated to the corresponding later specification, mixing old front mountings with new rear mountings, or vice versa, produces mismatched compliance characteristics.
Subframe Tower Plates, 15-Inch and 16-Inch Variants
The subframe tower plates (the reinforcement plates at the top of each front subframe leg that transmit load into the bodyshell) are available in two variants: one specification for cars with 6 × 15-inch road wheels (the standard MGF wheel size on most variants) and a different specification for cars with 7 × 16-inch road wheels (Trophy, later MGF sports variants, and MG TF). The 16-inch tower plates accommodate the increased loads and clearance requirements of the larger wheel and tyre combination. Confirm road wheel size when ordering tower plates.
MG TF Front Subframe Braces
MG TF cars received front subframe braces, additional tie bars that further stiffen the front subframe structure. The braces exist in two production variants with a breakpoint at VIN 3D618325/3D618326. These braces are MG TF-specific and are not fitted to MGF cars.
Two Child Pages

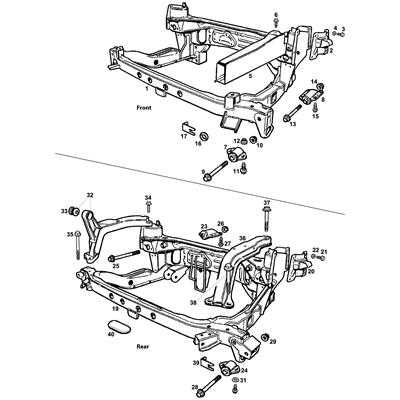

Front & Rear Subframe & Fixings covers the complete front and rear subframe assemblies (MGF and MG TF variants), subframe tower plates (15-inch and 16-inch variants), side members, rubber and solid mountings with their production breakpoints, subframe braces (MG TF), and all the mounting bolts, screws, and associated hardware required for subframe refit or replacement. Upgrades & Alternatives covers subframe-related upgrade options including solid mounting conversion kits for standard MGF owners wanting the firmer MGF Trophy/MG TF feel, subframe strengthening braces for hard-used cars, and subframe refurbishment services for cars with corroded or damaged subframes.
