The TD and TF share the same electrical architecture: a Lucas 12-volt positive earth system with a single battery on the bulkhead, dynamo charging via a control box, mechanical instruments driven by cables, and conventional switched circuits. Identifying the correct dynamo, control box, instruments, switches, and lamps requires chassis number, engine number, drive side, and current polarity, since several documented production changes through the TD's run create discrete breakpoints. The TF introduced a completely different dashboard with different instruments, switches, and loom.
Section Layout

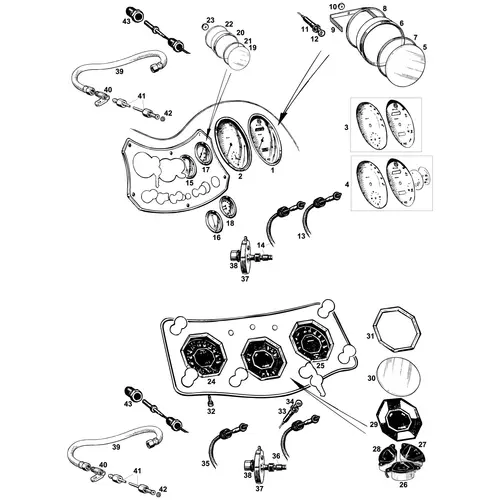

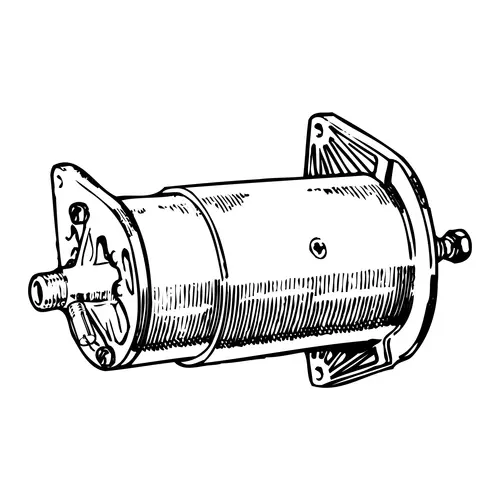

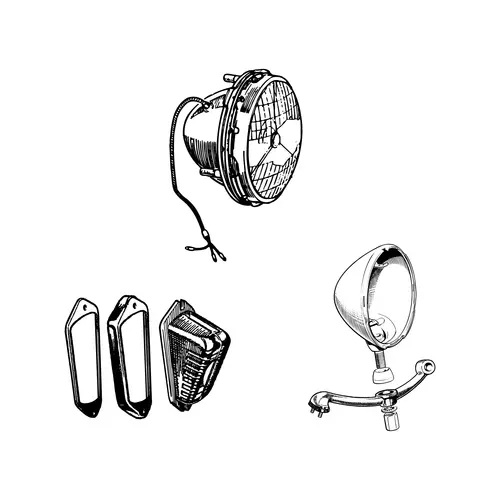

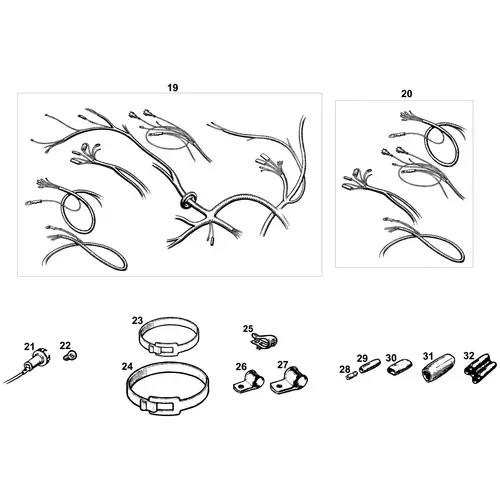

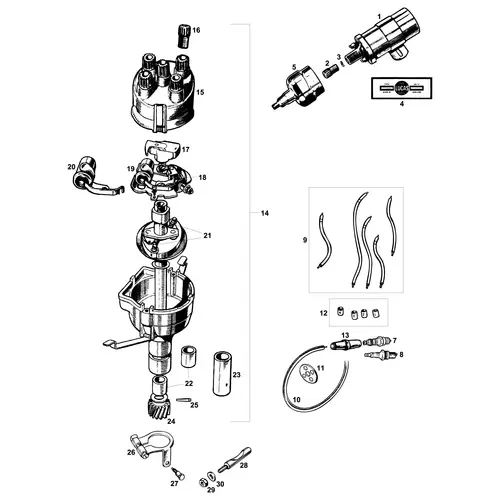

The Electrics section is divided into nine sub-sections: Battery; Coil, Distributor and HT Leads (covering ignition components); Charging (dynamo, control box, fuse box, indicator relay and flasher unit); Instruments and Cables (speedometer, rev counter, gauges, and the cables that drive them); Lighting (headlamps, side lamps, rear lamps, and bulbs); Starter Motor; Switches and Horns; Wiring Looms; and Upgrades and Alternatives.
Positive Earth, The Fundamental Consideration
All cars left the factory with a 12-volt positive earth Lucas system. The positive terminal connects to the chassis (earth) and the negative supplies the circuits, the opposite of modern convention. Negative-earth components will not function correctly, or may be damaged, on a positive earth car. Many cars have been converted to negative earth for modern accessories, electronic ignition, alternators, or LED bulbs.
Current polarity must be specified when ordering electrical components.
Lucas Components Throughout
All original equipment was Lucas. The earliest TDs used the Lucas C39 dynamo in black, replaced by the Lucas C40 on later TDs and all TFs. The dynamo drives the rev counter mechanically through a reduction gearbox at the rear, requiring a TD/TF-specific unit. The starter motor was the Lucas M35G inertia-engagement type.
Headlamps differ: the TD used Lucas S700 in chrome or paint on brackets between radiator and wing; the TF used Lucas F700 in the front wings. The control box, regulator, fuse box, indicator relay, and flasher unit are all Lucas-specific with documented production changes.
The TD-to-TF Electrical Transition
The TF kept the fundamental Lucas system but with substantially different mounting, instrumentation, and routing. The dashboard is completely different, the TD has a central panel with instruments offset to the driver, while the TF has all main instruments facing the driver and a centre panel of three smaller gauges. The headlamp arrangement is the most visible change: free-standing stalks on the TD, faired into the wings on the TF. Looms are model-specific.
Production Changes Within the TD Run
The TD's run saw several documented electrical changes. The control box changed at chassis TD/8142 (June 1951), with the Lucas RB106/1 and separate SF6 fuse box replacing the earlier RF95/2 combined unit. Magnetic instruments replaced chronometric at chassis TD/10751 (LHD) and TD/10779 (RHD) in October 1951. A combined oil/water gauge replaced the standalone at TD/13914 (February 1952).
A high beam warning lamp was added at TD/17548 (June 1952). Horn push and dip switch separated at TD/18883 (August 1952). Direction indicators were fitted to NA-export TDs from TD/22315 (November 1952), with the wiper motor moved to the centre of the windscreen at the same chassis. The spark plug changed from L87Y to N9Y at engine XPAG/TD2/22735 with the round-hole head.
Fuel Gauge Note
The TD was originally supplied without a conventional fuel gauge, a green warning light on the dashboard indicated low fuel, requiring the driver to monitor mileage and judge tank contents from the trip odometer. This was typical of the period and economical for the manufacturer; some owners have since fitted aftermarket fuel gauges where access to the tank-top sender allows.
Ordering Considerations
The electrical system requires more identification detail than any other section. Chassis number determines instrument specification (chronometric or magnetic, with or without high beam lamp), gauge specification (separate or combined oil/water), switch arrangement, control box (RF95/2 or RB106/1), wiring loom, and rear lamp. Engine number identifies spark plugs. Drive side determines loom routing, dashboard mirror-imaging on the TD, and tachometer cable length.
Polarity (positive or negative) determines dynamo, control box, ammeter, coil, fuel sender, and LED bulbs. Providing chassis number, engine number, drive side, and polarity ensures correct identification first time.
