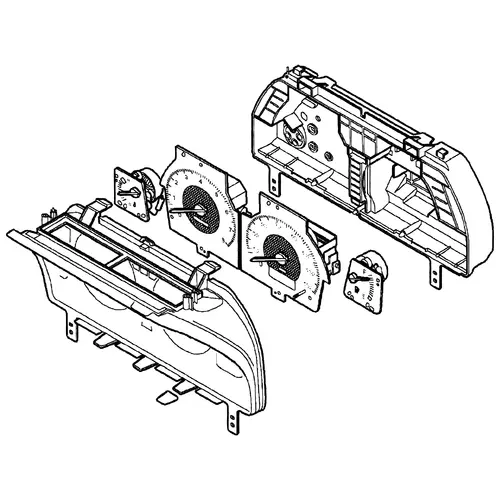

The MGF and MG TF instrument cluster exists in two fundamental forms either side of the XD511059 / MY2000 production breakpoint. Pre-MY2000 MGFs use a cream-faced cluster with cable-driven speedometer, the drive cable runs from a gearbox-mounted speedometer drive through the bulkhead to the back of the cluster. From MY2000 onwards (VIN XD511059), the cluster was redesigned with a silver face, and the speedometer signal was converted to an electronic feed from a gearbox-mounted speed transducer, no cable, no mechanical drive. This electronic arrangement continued through all MG TF production.
Owners ordering cluster components, speedometer drives, or replacement speedos therefore need to know which side of the XD511059 breakpoint their car sits on.
Which Child Page to Choose

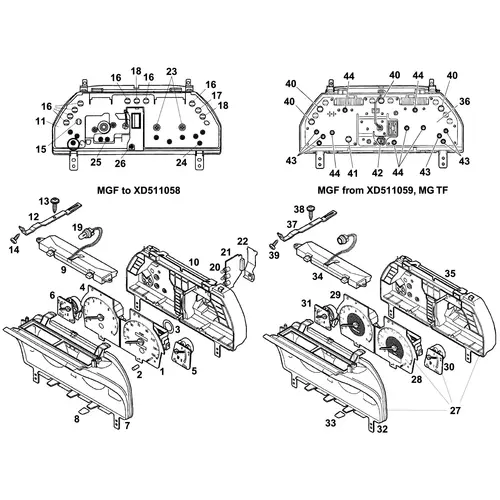

Speedometer & Tachometer covers the main instrument cluster assembly and its internal components, the speedometer and tachometer movements, instrument bulbs, face plates, warning light lenses, and cluster housing, across both the cream-faced and silver-faced specifications. Stepper motor failure diagnostics and specialist cluster repair guidance are on this page. Speedometer Cables covers the speedometer drive cable fitted to pre-XD511058 cable-driven MGFs, including the drive assembly at the gearbox end, the cable itself, and the connector at the cluster end. For post-XD511059 cars with electronic speedometers, this page also covers the gearbox-mounted speed transducer and its wiring.

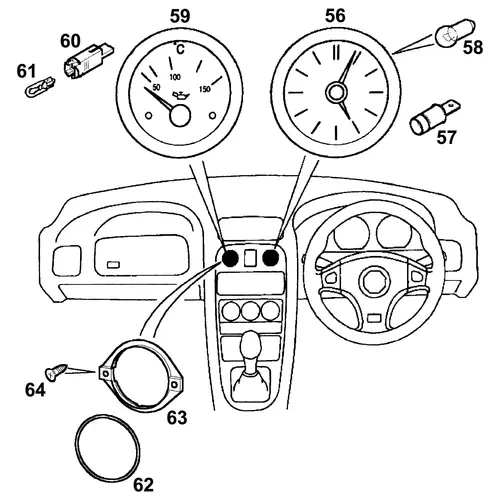

Auxiliary Gauges covers supplementary instruments that were available as Sports Pack or dealer-fit options, and aftermarket gauges fitted to the three-gauge pod on the centre console. Oil pressure gauges, oil temperature gauges, voltmeters, and the associated senders, wiring, and mounting hardware are on this page.
