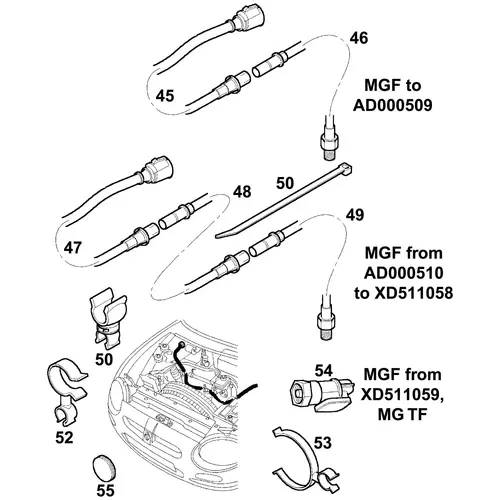

The speedometer drive changed twice across MGF production and was completely redesigned for the MG TF era. Earliest MGFs up to VIN AD000509 use a two-piece mechanical cable: an upper cable (handed LH and RH by steering position) running from the cluster to a junction, and a lower cable continuing to the gearbox-mounted drive. From VIN AD000510 to XD511058, MGF cars use a three-piece cable: upper, intermediate, and lower sections joining in two separate couplings. This revision improved cable routing and reduced stress on the individual sections.
From VIN XD511059 onwards, covering the MGF Mk2 facelift and all MG TF production, the mechanical cable system was replaced by an electronic speed transducer mounted on the gearbox, which sends an electronic pulse signal through the wiring loom to the instrument cluster. No speedometer cable is fitted to these cars.
Ordering the Correct Cable
For cable-driven MGF cars, ordering requires knowing the VIN and (for pre-AD000509 cars) the steering hand. The lower cable (YBD101250 catalogue reference) is common between the two-piece and three-piece systems. Cable routing accessories, swivel clips and cable ties, are catalogued individually, and the retention hardware itself changed during Mk1 production at VIN WD035815 for RHD cars (swivel clip replaced with cable tie). Cable failure typically manifests as a bouncing or oscillating speedometer needle (inner cable fraying), speedometer noise (dry or worn inner cable), or complete speedometer failure (snapped inner cable).
A replacement cable should be lightly lubricated at the inner core and routed without tight bends to prevent premature wear.
Electronic Speed Transducer for Post-XD511059 Cars
The electronic speed transducer mounts in the same position on the gearbox as the earlier cable drive, and feeds a single cable that forms part of the main wiring loom. The transducer output is used by three separate systems: the speedometer itself, the EPAS control unit (which uses the speed signal to progressively reduce steering assistance as speed rises, ensuring appropriate steering weight on the motorway), and on CVT automatic cars, the transmission control module for ratio selection. Transducer failure therefore typically presents as simultaneous speedometer, EPAS, and on automatic cars, gearbox issues, symptoms such as full-assist EPAS at motorway speeds (making the steering feel alarmingly light) point strongly to transducer failure over instrument cluster fault. A bulkhead plug is catalogued for the unused speedometer cable hole when converting an early cluster housing to accept the electronic transducer routing.
Analogue Clock, Three Face Variants
The centre-pod analogue clock sits between the speedometer and tachometer, catalogued in three face variants matching the main cluster: cream-face for pre-XD511058 MGF, silver-face for MGF from XD511059, and a separate silver-face clock for MG TF. The clock bulb (2W BA7s clear) is catalogued individually along with its holder. Clock bulb failure is common and is an owner-level replacement without cluster removal.
Oil Temperature Gauge, Five Variants Including a Safety-Relevant Upgrade
Five oil temperature gauge variants are catalogued. Early MGFs to VIN AD001017 use a 150°C cream-face gauge. From AD001018 through XD511058, the gauge upgraded to a 170°C scale (cream face), this matters because the K-series can exceed 150°C oil temperature under enthusiastic driving, so an original 150°C gauge can show red in normal use. From XD511059 onwards, silver-face 170°C gauges are catalogued as three separate variants for MGF non-VVC, MGF VVC, and MG TF, reflecting different sender calibrations.
Mounting hardware, bulb, bulb holder, O-ring, clamp ring, and four fixing screws, is catalogued individually.
