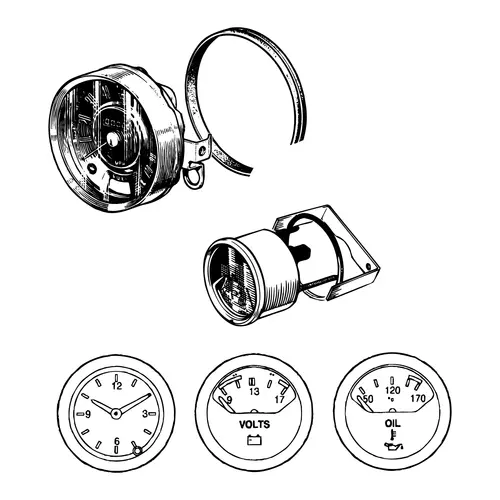

The original Classic Mini gauge layout was the simplest possible, a single central speedometer with the fuel gauge integrated into its face, mounted in a circular binnacle in the centre of the dashboard. Higher-trim cars (Cooper, 1275 GT, the trim-grade saloons) added a temperature gauge and oil pressure gauge alongside the speedometer for a 3-clock arrangement, and many owners have since added auxiliary water temperature, oil temperature, voltmeter or tachometer gauges below or beside the standard binnacle.
Replacement and restored gauges are available across the full Mini range, allowing a fading or non-functional original instrument to be returned to working condition without resorting to a generic aftermarket replacement.
Speedometers
Classic Mini speedometers are model and engine-specific, the speedometer reads from the differential via a cable drive, and the gear ratio in the speedometer head must match the differential ratio and tyre size for an accurate reading. Smiths-branded speedometers are available new and as reconditioned exchange units in MPH and KPH calibrations for the various 998cc, 848cc, 1098cc and 1275cc specifications. Each speedometer is identified by its Smiths reference number on the face of the gauge, and the correct version must be matched to the car’s engine and final drive ratio.
Fuel Gauges
The fuel gauge reads from the fuel tank sender unit and is available new and as a reconditioned exchange unit. The gauge is fitted to the rear of the speedometer binnacle and is voltage-regulated by the voltage stabiliser also mounted on the binnacle, when fuel gauge readings become erratic, the voltage stabiliser is normally the first item to check before condemning the gauge or sender. Sealing O-rings and fixing screws are listed separately.
Temperature Gauges
The water temperature gauge reads from a sender on the cylinder head or thermostat housing and is available new and as a reconditioned exchange unit. The gauge fits to its own aperture in the binnacle, secured with a fixing strap and gauge nut, and sealed with an O-ring against the binnacle face. The temperature gauge sender is listed under the Engine Components category, confirming the gauge type and sender combination is essential when ordering, as the two must match electrically.
Oil Pressure Gauges
The oil pressure gauge reads from a take-off point on the engine via a small-bore copper pipe, with a flexible hose section between the engine and the bulkhead to allow for engine movement on its mounts. The gauge is available new and as a reconditioned exchange unit. It fits to the binnacle with the fixing strap and gauge nut, sealed with an O-ring against the binnacle face.
Speedo Cables
Speedo cable specifications differ across production and between RHD and LHD configurations. Earlier cars use a single one-piece cable matched to the steering side, while 1999-on cars use a two-piece cable arrangement comprising an upper and a lower section that join in the engine bay. The speedo cable connects the differential drive to the back of the speedometer head, and is one of the most common service items on a Classic Mini, kinking, internal wear and inner-cable breakage are all routine failures that produce the familiar wavering or non-functioning speedometer needle. Replacing the cable as a complete assembly (rather than just the inner) is the recommended approach.
A small amount of fresh cable grease applied during fitment extends the life of a new cable significantly.
Oil Pipes
The oil pressure gauge pipe assembly connects the engine pressure take-off to the gauge via a rigid copper pipe and a flexible hose section that absorbs engine movement. The complete pipe assembly includes the nipple, olive and union nut required for connection to the gauge, and a leather sealing washer for the gauge connection. Pipe failures are typically at the flexible section after extended service or at the union connection where the leather washer hardens with age.
Auxiliary Gauges
For owners adding auxiliary gauges (water temperature, oil temperature, voltmeter, ammeter, tachometer) the QParts overlay dashboards in the Dashboards category are available with cut-outs for 1, 2 or 3 auxiliary gauges, allowing a coordinated upgrade without cutting into the original fascia.
MGOC Spares Mini Gauge Range
The MGOC Spares Classic Mini gauge range covers Smiths speedometers in MPH and KPH (new and reconditioned exchange), fuel gauges, water temperature gauges, oil pressure gauges (new and reconditioned exchange), voltage stabilisers, gauge fixing straps, gauge nuts, sealing O-rings, speedo cables for early one-piece and 1999-on two-piece arrangements in RHD and LHD, and the oil pressure pipe assembly with nipple, olive, union nut and leather sealing washer.
