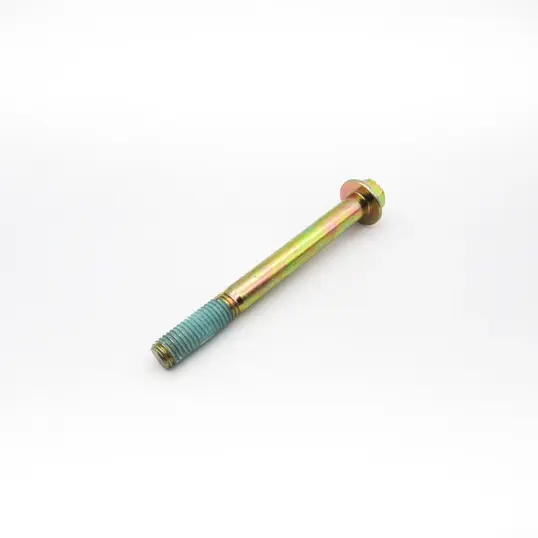

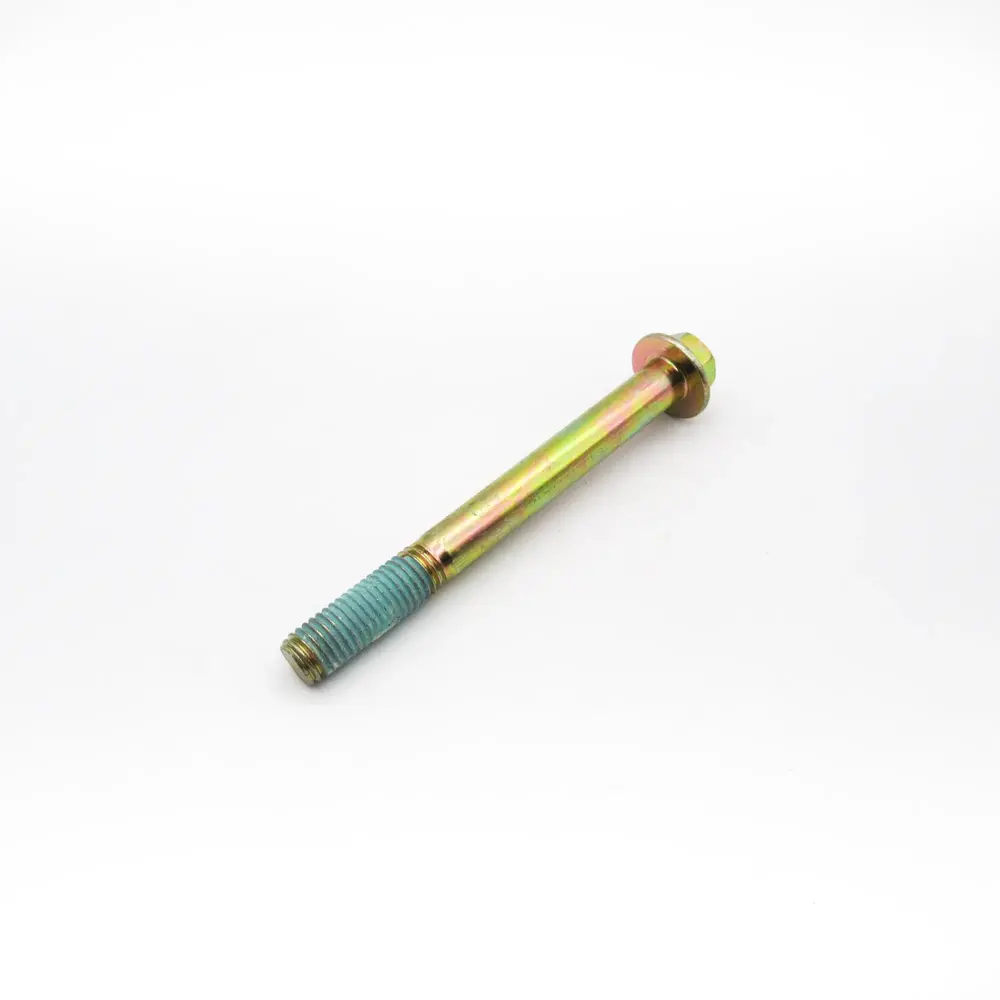

135mm Bolt to be used with FAM9525.
Until the introduction of MGF Trophy, rubber subframe mounts of part number FAM9525 were used along with a 135mm bolt (KYG000260) and flanged securing nut (FN114041). Inherently, these failed over time and contributed to sloppy handling.
Hollow subframe mounts (KGE000110) were then fitted to the MGF Trophy and all TF models providing a more stable ride and reliability. A shorter 105mm bolt (KYG000110) is needed to fit these subframe mounts.
It is preferable for owners of MGFs to fit KGE000110 subframe mounts with KYG000110 105mm bolt in replacement of the rubber mounts which are prone to deteriorate over time.
If you wish to replace your rubber mounts with rubber mounts, be sure to use the 135mm bolt KYG000260.
