The Lucas dynamo is belt-driven from the crankshaft pulley, sharing the fan belt with the water pump, making fan belt condition critical to charging and cooling simultaneously. The TD and TF dynamo has a reduction gearbox and coupling on the rear that drives the rev counter cable, a feature distinguishing it from most contemporary Lucas dynamos. This integrated tachometer drive is one reason originals are difficult to find today, with replacement principally on a customer's own unit reconditioned basis.
Reconditioned Dynamo
The reconditioned dynamo is offered on a customer's own unit reconditioned basis, where the customer's existing dynamo body and rev counter drive arrangement are stripped, inspected, and rebuilt with new internal wear components, preserving the irreplaceable tachometer drive facility on the original housing. This is the recommended approach for owners whose original dynamo is no longer charging satisfactorily but whose unit is otherwise sound.
Polarity and Conversion
The dynamo must be specified for correct polarity, positive earth (factory) or negative earth (if converted). All cars left the factory with positive earth. To convert, the dynamo must be repolarised by briefly flashing the field terminal to the battery, reversing the residual magnetism. The voltage regulator must also be changed to match the new polarity, as a positive earth box will not regulate a negative earth system.

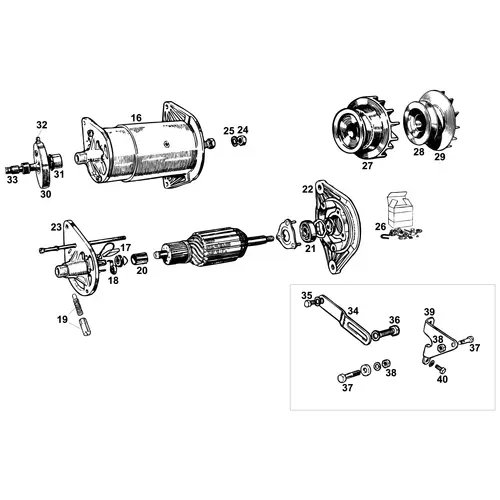

Dynamo Internal Overhaul Components
For owners undertaking their own overhaul, the principal wear components are individually catalogued: carbon brush set (the commonest cause of intermittent or no charging), brush spring set, bearing oiler, commutator-end bush, pulley-end bearing, and end plates for both ends. A retaining nut and spring washer secure the pulley/fan to the armature shaft, and a sundry parts kit covers smaller items. Replacing the brushes and cleaning the commutator often restores satisfactory charging, the commutator should be inspected for scoring during any brush replacement.
Dynamo Pulley and Cooling Fan
The dynamo carries its own pulley and cooling fan (separate from the engine cooling fan, which is mounted on the water pump). Two specifications exist: an early TD type with combined pulley-and-fan as a one-piece unit, and a late TD and TF type with separate pulley and fan items.
The late type may be fitted to earlier engines as a replacement specification.
Rev Counter (Tachometer) Drive
The rev counter drive is what makes the TD/TF dynamo distinctive. A reduction gearbox at the rear reduces dynamo armature speed to the rev counter ratio, with a coupling kit between gearbox and dynamo and a grease nipple for lubrication. The cable runs from the gearbox to the dashboard rev counter, in RHD (4 ft) and LHD (3 ft 4 in) lengths. When the rev counter reads inaccurately, jumps, or fails, the cable should be checked first (commonest failure), then the gearbox and coupling.
Dynamo Mounting
The dynamo mounts to the engine block via a bracket secured by two bolts, with an adjusting link to set fan belt tension. Two pivot bolts and nuts secure the main pivot. Belt tension is adjusted by loosening the pivot and link fixings, levering the dynamo away from the engine until correct tension (about half an inch of deflection at the midpoint of the longest run), then tightening.
Diagnosis and Service
Intermittent or no charging is commonly worn brushes failing to make consistent contact with the commutator. A dynamo that fails to charge at all may have lost residual magnetism and need flashing. Overcharging (battery boiling) or undercharging (battery flat) typically points to the control box rather than the dynamo. The fan belt should be inspected during any dynamo work, as a slipping belt produces the same symptoms as a failing dynamo.
Ordering Considerations
Reconditioned dynamos are supplied on a customer's own unit reconditioned basis to preserve the original rev counter drive housing. Internal overhaul components (brushes, springs, bearings, bushes, end plates) are catalogued individually. Pulley and fan specification depends on production date, early TD combined unit or late TD/TF separate items. Rev counter drive components are common to both models, with cable length differing by drive side (RHD 4 ft, LHD 3 ft 4 in).
Mounting hardware is common across both. Polarity (positive or negative earth) must be specified for any complete dynamo replacement.
