The Engine Upgrades section focuses on the single most significant service opportunity on any MGF or MG TF, the definitive solution to the K-series head gasket failure mode that has defined ownership of these cars for a generation. The original elastomer head gasket used on the K-series was prone to failure, the mid-engine installation in the MGF and TF being particularly vulnerable because the long coolant runs between the rear-mounted engine and the front-mounted radiator make cooling system integrity more critical than in a front-engined application. After years of development work, principally by Land Rover, who used the K-series in the Freelander and encountered the same vulnerability, a complete, well-engineered solution emerged that has become the standard remedy across the specialist community.

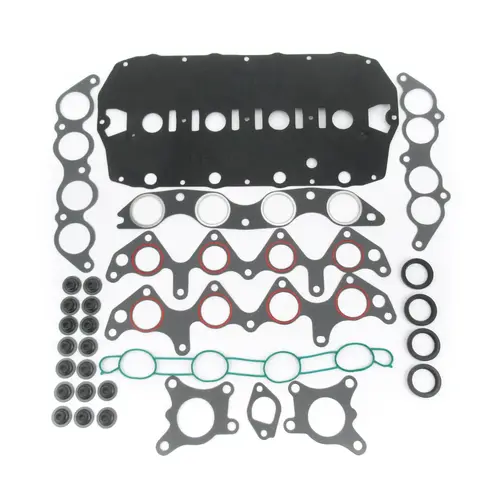

The Head Gasket Kits
The head gasket and lower rail solution is available in two versions, one for Non-VVC engines fitting the MGF 1.8i, MGF 1.6i, TF 115, TF 120 Stepspeed, and TF 135, and an equivalent for VVC engines fitting the MGF VVC, MGF Trophy 160, and MG TF 160. Each kit comprises a multi-layer steel head gasket replacing the original elastomer item, a strengthened lower rail assembly stabilising the bottom end against the liner movement that contributed to the original failure mode, a complete set of ten high-grade through-bolts, and a cam locking tool for correct reassembly timing, with all components also available separately. The metal-to-metal seal does not degrade in the way the original gasket could, the uprated bolts deliver consistent higher clamping force, and the strengthened rail provides the structural rigidity the original design lacked, so fitted as a set and following the correct procedure the combination has effectively ended the K-series head gasket story for owners who adopt it.
Cylinder Liner Shims
A head gasket kit on its own cannot produce a lasting seal if the cylinder liners have sunk below specification. The K-series' damp-liner architecture means the liners can move fractionally under thermal cycling, and on high-mileage engines they often protrude below the required minimum above the block face. Cylinder liner shim kits allow sunken liners to be restored to correct protrusion, ensuring the new gasket makes the correct metal-to-metal seal all the way around each cylinder. Liner protrusion must be measured with a dial gauge before fitting any head gasket, and any out-of-spec liners shimmed before proceeding, this single check being one of the most common causes of repeat head gasket failure when skipped, and one of the most effective insurance policies when completed.
Proactive or Remedial
The kits serve two distinct customer cases. For owners who have already experienced head gasket failure, the kit is the standard remedy, as fitting a metal gasket alongside the original elastomer specification would defeat the point.
For owners whose cars are running fine on original gaskets, the kit is a proactive upgrade, adopting the metal solution during a timing belt service or other major cylinder head work to address the original design vulnerability before it manifests. Because the labour cost of a head gasket change is identical whether the original or the metal gasket is fitted, the incremental cost of the upgrade is purely the kit price, making it the obvious specification for any cylinder head work. Before ordering, the engine variant should be confirmed from the engine number prefix to select the correct kit, and liner protrusion assessed during the cylinder head work to determine whether shims are also required.
