K-series head gasket failure was never caused by a single design flaw, it was the result of several factors combining. The original elastomer (Klinger) head gasket used a rubber sealing bead that could become unbonded from its steel carrier under the thermal cycling of the 1.8-litre engine. The steel cylinder head locating dowels that held the block and head in precise alignment were replaced during early production with plastic dowels, originally specified to help prevent gasket damage during engine assembly, but subsequently found to soften under heat and allow minute 'head shuffle' that degraded the seal. Steel dowels were re-specified in 2000.
The move from wet liners on the earlier 1.1/1.4-litre K-series to damp liners on the 1.6/1.8-litre variants with the larger 80mm bore reduced the coolant clearance between cylinders. The thermostat was positioned on the pump intake rather than the head outlet. And in the mid-engine MGF and TF, the long coolant circuit to the front-mounted radiator created thermal shock as cold coolant reached the hot engine when the thermostat opened, this was later addressed by the Pressure Relief Thermostat (PRT) on 2003-onwards MG TFs. None of these individually caused gasket failure, but together they created the environment in which the original elastomer gasket's weaknesses could manifest.
The Land Rover MLS Solution
The multi-layer steel (MLS) head gasket was developed by Land Rover for the K-series in its Freelander application and adapted by the specialist community for MGF and MG TF use. The MLS design replaces the elastomer bead with a metal-to-metal seal formed by compressed steel layers, a construction that does not degrade with age or heat cycling. Combined with uprated 10.9-grade head bolts (replacing the original 9.8-grade) and a strengthened lower rail (stabilising the bottom end against the liner movement that contributed to the original failure mode), the MLS solution has effectively ended the head gasket story for owners who adopt it. SAIC subsequently developed an evolved 6-layer MLS gasket for the N-Series engine (the modified K-series fitted to NAC MG TFs from 2008, and to MG3, MG6, MG7, and Roewe applications) with no fire rings and a revised torque sequence, that engine has a very good service record with no known head gasket failures, vindicating the MLS approach as the correct engineering answer to the original problem.
Three Purchase Options

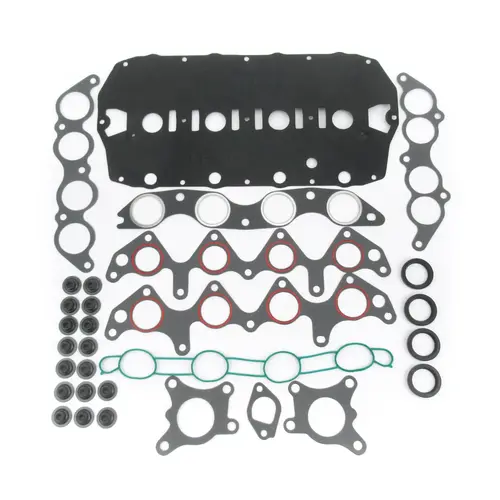

The catalogue offers three tiers of head gasket purchase, covering the range of customer cases. The complete HGF kit, HGF1 for Non-VVC engines (MGF 1.8i, MGF 1.6i, TF 115, TF 120, TF 135) and HGF2 for VVC engines (MGF VVC, MGF Trophy 160, MG TF 160), includes the MLS gasket, the strengthened lower rail, a complete set of ten 10.9-grade through-bolts, and the Z070 camshaft locking tool. This is the specified-solution kit for owners committing to the full upgrade. The standalone MLS head gasket set (LVQ000090MSG for Non-VVC, LVQ000100MSG for VVC) covers owners who already have a strengthened rail and 10.9 bolts fitted, or who are replacing an MLS gasket in isolation.
The original-specification elastomer head gasket set (LVQ000091SLP for Non-VVC, LVQ000102SLP for VVC) remains stocked because it is still the correct choice where cylinder liner protrusion is below the MLS functional minimum and cannot be brought up to specification by shimming. A bottom-end gasket set (LVQ000070) covers complete engine rebuilds where the sump, oil pump, and lower engine seals are all being renewed.
MLS or Elastomer, Decided When the Engine is Apart
One of the realities of head gasket work is that the correct gasket choice often cannot be confirmed until the engine is partially disassembled and cylinder liner protrusion measured with a dial gauge. The MLS gasket requires a minimum liner protrusion above the block face for correct seal formation, if the liners have sunk below this specification and cannot be shimmed back to the minimum, the original-specification elastomer gasket remains the correct service choice. For this reason, many customers stock both types or order the MLS kit with the intention of falling back to the elastomer set if liner measurements require it. The cylinder liner shim kits catalogued under Cylinder Liner Shims are the restoration path for most sunken-liner cases, but cases where shimming alone is insufficient still occur on high-mileage engines.
Kit Fitting Requirements
The MLS head gasket is not a drop-in replacement without preparation. Before fitting, cylinder liner protrusion must be measured with a dial gauge, all four liners must protrude above the block deck face within specification, and must be consistent across the four cylinders. Liners that have sunk must be shimmed using the dedicated liner shim kits. The block and head mating faces must be clean, flat, and free of any old gasket material.
