The Classic Mini’s fuel system evolved through four distinct generations across production, and identifying which system is fitted to your car is the single most important step before ordering any fuel system component. The four types are: SU HS4 carburettors on small bore engines (848cc, 998cc, 1098cc) and the 1275 GT, SU HIF carburettors on 1275cc carburettor models (1990 to 1994), single point fuel injection or SPi (1991 to 1996), and multi-point fuel injection or MPi (1997 to 2000). Each system requires specific components that are not interchangeable between types.

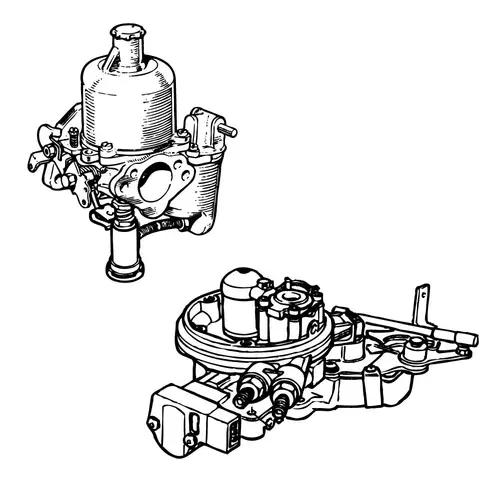

SU Carburettors, Small Bore Engines
The 848cc, 998cc and 1098cc engines from 1976 onwards were fitted with a single SU HS4 Capstat carburettor as standard, recognisable by a large diameter metal cap crimped onto the plastic body of the jet. The HS4 was also the standard fitment on the 1275cc 1275 GT up to 1980.
Earlier pre-1976 Minis used the smaller HS2 carburettor, but all cars within the catalogue scope (1976 to 2000) use the HS4 or later HIF types. Metering needles, jet sizes and choke specifications varied across engine sizes and production dates.
SU Carburettors, 1275cc Models
The 1275cc Cooper from 1990 to 1991 used a single SU HIF44 carburettor, while non-Cooper 1275cc models from 1992 to 1994 were fitted with the smaller SU HIF38. The HIF (Horizontal Integral Float) design incorporated the float chamber within the carburettor body itself, dispensing with the separate side bowl of the earlier HS type. Cooper and non-Cooper carburettors used different metering needles, BFY for the Cooper and AEM for the non-Cooper, and these are not interchangeable as they are calibrated for different compression ratios and power outputs. Carburettor induction ended on UK-market Minis in August 1994 when SPi was adopted across the range.
Single Point Injection, SPi
Single point injection was introduced on the Mini Cooper from 1991 and extended to all 1275cc models by 1994. The SPi system uses a single injector mounted in a throttle body assembly, with a stepper motor controlling idle speed and a potentiometer providing throttle position information to the engine management system. SPi was fitted to all UK-market Minis from 1994 to 1996, with some Japanese export models continuing with SPi through to 1999.
Multi-Point Injection, MPi
The MPi system was introduced in 1997, representing the most significant mechanical change to the Mini engine in decades. Using the Rover MEMS 2J engine management system with twin injectors mounted on a fuel rail, the MPi system also introduced direct electronic ignition, eliminating the distributor entirely. The distributor housing was removed from the cylinder block, oil galleries were redesigned and the oil filter relocated. The MPi changeover also brought a front-mounted radiator, revised front subframe and electric cooling fan, making this far more than a simple fuel system change.

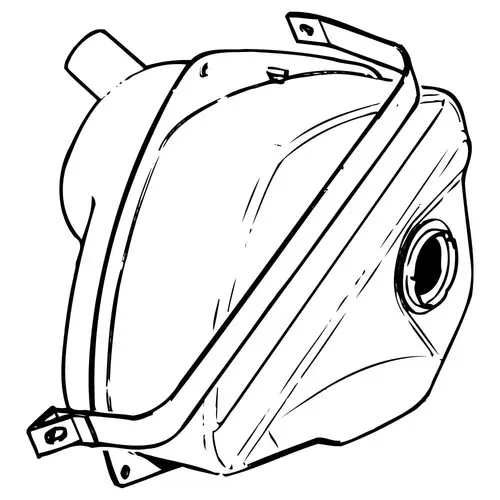

Fuel Tanks and Sender Units
The Classic Mini fuel tank is mounted beneath the boot floor. Tank specifications changed across production, and the sender unit and fuel outlet arrangements differ between carburettor, SPi and MPi models. The MGOC Spares range covers replacement fuel tanks, sender units, sender seals and associated fixings for all variants.

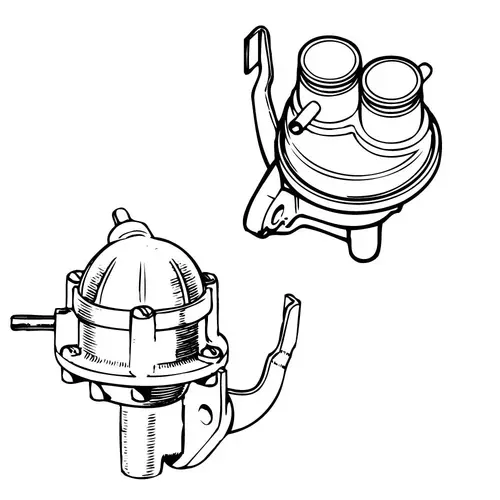

Fuel Pumps
Carburettor Minis use a mechanical fuel pump mounted on the engine block and driven by the camshaft, while SPi and MPi models use an electronic in-tank fuel pump integrated with the sender unit assembly. The two pump types are fundamentally different in operation and are not interchangeable.
E10 Ethanol Compliance
MGOC Spares has supplied E10-compliant fuel system components since January 2012, well before the UK’s transition to E10 petrol in September 2021. All fuel tanks, hoses, pumps and carburettor components supplied by MGOC Spares are fully E10 compliant. For optimum performance and protection, owners of carburettor Minis should fill with 97+ Premium Unleaded E5 rather than standard 95 E10, as carburettor engines cannot compensate for the leaner running characteristics of ethanol-blended fuel. For detailed guidance, see our blog Using Ethanol-Blended Petrol in Your Classic Car.
MGOC Spares Fuel System Range
The MGOC Spares Classic Mini fuel system range covers all carburettor types (HS4, HIF44, HIF38), complete carburettor rebuild kits, jets, needles, float kits, throttle body assemblies and injectors for SPi and MPi systems, fuel pumps, fuel tanks, sender units, fuel hoses and fuel additives for ethanol protection.
