The Systems & Components section covers everything in the MGA exhaust downstream of the manifold flange: the downpipe (or downpipes on the Twin Cam), the front pipe that runs back along the left-hand side of the chassis, the silencer, the tail pipe, and the mounting hardware that secures the system to the car. Items are available either as complete systems, every component from the manifold flange to the tail pipe, supplied together for a coordinated replacement, or as individual components where only one section of the system needs renewal. Both routes are available in original-specification mild steel for concours restorations and in stainless steel for long-service-life replacement. The correct specification depends on whether the car is a pushrod variant (single-silencer system common to 1500, 1600 and 1600 Mk II) or a Twin Cam (twin-downpipe system specific to that engine).
Pushrod system layout, 1500, 1600 and 1600 Mk II

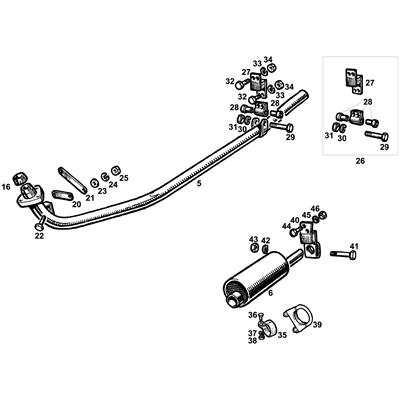

The pushrod exhaust system runs from a single downpipe off the three-branch manifold flange, back along the left-hand side of the chassis through the front pipe, into a simple tubular silencer carried on two mounting brackets, one in front of and one behind the silencer, and out through the tail pipe to the rear of the car. The system specification is identical across all three pushrod variants, and no changes were made to the specification during production. The only factory deviation concerns late 1600 Mk II cars exported to Switzerland from car/chassis 108405, which carried an additional silencer in the front pipe to comply with Swiss noise legislation. All other pushrod MGAs, of whatever market or build date, use the single-silencer specification.
Twin Cam system layout
The Twin Cam system has two downpipes running from the Twin Cam's two exhaust manifolds, the front manifold serving cylinders 1 and 4, the rear manifold serving cylinders 2 and 3. The two downpipes merge into a single front pipe well forward of the silencer. The front pipe runs back along the left-hand side of the chassis and into the silencer, which is similar in form to the pushrod item but of a slightly different type, with a larger pipe diameter to suit the merged twin-downpipe feed. From the silencer the tail pipe exits to the rear of the car.
The Twin Cam system is specific to the Twin Cam engine and shares no interchangeable components with the pushrod system, downpipe flange patterns, front pipe length and diameter, and silencer connections are all Twin Cam-specific.
Complete systems versus individual components
A complete exhaust system is the practical choice for most replacements on an MGA that has been in service for several years. Corrosion on a mild-steel system tends to affect the whole installation rather than just one section, and replacing a single component back into a corroded system often results in the next-weakest section failing within a season or two. A complete replacement ensures all joints match and all sections are at a common age. Individual components, downpipes, front pipes, silencers, tail pipes and the clamp hardware between them, are available separately for targeted replacement where only one section has failed.
When renewing individual components, the joint type and bore size at each junction must match the adjacent section of the original system.
Mild steel versus stainless steel
Mild steel replicates the original factory specification and is the correct choice for a concours restoration where original materials and exhaust note matter. Mild-steel service life depends on usage pattern, storage conditions and UK climate but is typically several years before re-replacement is needed. Stainless steel eliminates corrosion as a failure mode and gives a materially longer service life, along with a mirror-finish silencer appearance that is different from the matt-black factory look. Mixing mild-steel and stainless sections in the same system is generally avoided where possible: in practice, once the mild-steel section starts to corrode it deteriorates at a very different rate from the adjacent stainless, and the joint between the two becomes the first failure point.
Where a part-replacement is necessary, staying on the same material as the remaining sections of the system gives the most predictable service life.
Exhaust fixings and mountings

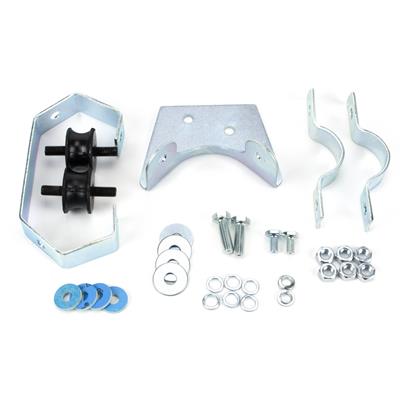

Separately from the pipework itself, the system relies on a set of mounting brackets, rubber insulator hangers, and joint clamps to secure it to the car and to isolate vibration. These items sit within the Exhaust Fixings & Mountings child node and include the two silencer mounting brackets, the rubber hangers that isolate the system from the chassis, the clamps at each inter-section joint on the system, and the flange hardware at the manifold end.
