Exhaust upgrades and alternatives cover three distinct areas. The first is a material change from original-specification mild steel to stainless steel for the complete exhaust system, giving materially longer service life and a different engine-bay appearance.
The second is heat management at the exhaust manifold itself, manifold wrap and high-temperature paint, aimed at reducing under-bonnet heat radiated from the exhaust side of the engine and protecting the factory or reproduction manifold's finish. The third is decorative finishing at the exhaust exit, with rolled stainless tail pipe trims. Each of these upgrades is optional: the factory mild-steel system remains the correct specification for concours restoration and is perfectly serviceable for a car used lightly, while the upgrades address specific issues encountered in regular year-round road use.

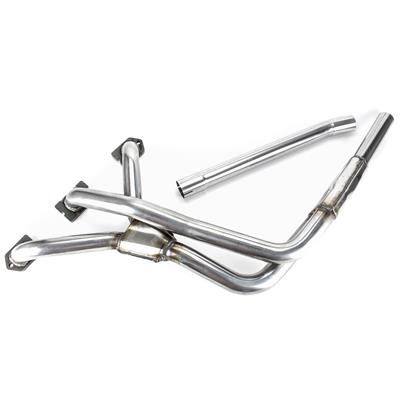

Stainless steel exhaust systems
Stainless steel is the most significant upgrade option in this section. A complete stainless system replicates the factory pattern for pushrod cars (single three-branch manifold, single silencer) and for the Twin Cam (twin manifolds merging into a single front pipe, larger-diameter silencer) but is constructed in corrosion-resistant stainless steel with TIG-welded joints and a mirror-finish silencer. Service life is materially longer than the mild-steel equivalent, particularly for cars used year-round in UK conditions where road salt and moisture shorten mild-steel exhaust life. The stainless option is covered in full under the Stainless Steel Exhaust Systems node.
Manifold wrap and clamps
Exhaust manifold wrap is a woven thermal-insulation material that binds around the exhaust manifold to reduce the surface temperature and the amount of heat radiated into the engine bay. On a pushrod MGA, the three-branch cast-iron exhaust manifold sits on the left-hand side of the cylinder head, while the inlet manifold and its two H.4 carburettors sit on the right-hand side, with a heat shield between them above the engine to limit direct heat transfer to the float chambers. Despite the heat shield, under-bonnet air temperature rises considerably with the exhaust manifold at operating temperature, and the float chambers can suffer fuel vaporisation in hot weather or slow traffic, rough running, hesitation or refusal to restart on a hot engine. Wrapping the exhaust manifold lowers the radiating temperature and reduces this heat-soak issue.
Manifold wrap is supplied with stainless steel cable-ties or clamps to secure it and is available in several widths to suit the three-branch pushrod manifold and the twin Twin Cam manifolds.
High-temperature exhaust paint
High-temperature exhaust paint is formulated to survive the operating temperature of exhaust componentry, typically rated to 600°C or above, where ordinary engine enamel would blister and burn off within minutes. It is available in black, silver and other finishes and is used either for refreshing the appearance of a factory-pattern cast-iron manifold or for protecting a bare mild-steel system against surface corrosion. Cast-iron manifolds were supplied from the factory in unpainted cast iron and developed a dull surface patina in use; high-temperature paint can either reproduce that matt finish or give a brighter appearance as the owner prefers. On stainless systems, high-temperature paint is generally not required, as the stainless resists corrosion in its natural state.
Tail pipe accessories
Rolled stainless-steel tail pipe trims slide over the existing tail pipe to give a polished finish at the exhaust exit. The trim is an optional cosmetic upgrade that fits either an OE mild-steel system or a stainless system, secured by a grub screw or small clamp. Beyond the visual effect, a stainless trim on a mild-steel tail pipe also shields the cut end from direct road-spray impingement, delaying the first corrosion break at the exit. Tail pipe accessories are covered under the Tail Pipes & Accessories node.
Ordering considerations
Upgrades can be combined, a stainless system with manifold wrap and a polished tail pipe trim is a common combination for an owner wanting the longest practical service life and the cleanest under-bonnet appearance. All three upgrade categories are available for both pushrod and Twin Cam engines, with the stainless system and the manifold wrap specified differently between the two (the Twin Cam twin-manifold pattern versus the pushrod three-branch casting). Concours restoration work should normally avoid the stainless system and the polished tail pipe trim, both of which are non-factory in appearance; manifold wrap and high-temperature paint are acceptable for concours use where they are applied to restore or protect the factory-pattern manifold finish rather than to alter its appearance.
