The heating system on the MGF and MG TF is conventional in principle, engine coolant is routed through a matrix, a blower motor pushes air across the matrix, a valve controls how much hot coolant reaches the matrix, and control knobs set temperature, fan speed, and distribution. What is not conventional is the routing. The engine is mounted behind the cabin; the heater matrix sits in the front bulkhead ahead of the driver's footwell. The hot coolant has to travel from the rear of the car to the front through long pipes running along the underfloor, alongside the main coolant pipes that feed the front-mounted radiator.
This has two consequences: warm-up time to full cabin heat is noticeably longer than on a front-engined car, and the heater pipes are exposed to the same road spray, salt, and corrosion risks as the main coolant pipes. Stainless steel replacement heater pipes, catalogued under Upgrades & Alternatives, are a worthwhile preventive for owners tackling an ageing underfloor pipe system.
Which Child Page to Choose

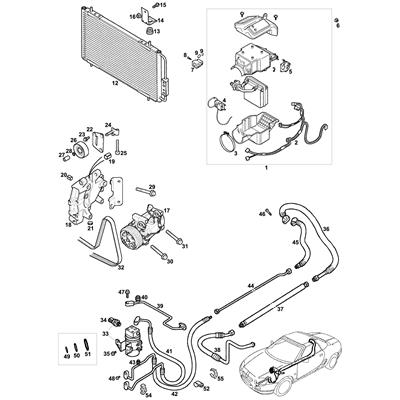

Air Conditioning covers the factory AC system fitted as an option on higher-specification cars, including the compressor driven from the ancillary belt, the condenser mounted ahead of the front radiator, the evaporator behind the dashboard, hoses and fittings, receiver drier, expansion valve, and refrigerant. AC-related wiring, fascia switches and relays are catalogued on the Electrics side. Heater Controls covers the dashboard control panel, rotary temperature and fan-speed knobs, and the associated cables or electronic linkages to the heater unit and valve. Production changes in the control panel layout across the MGF Mk1/Mk2 transition and the MG TF facelift are covered on this page.

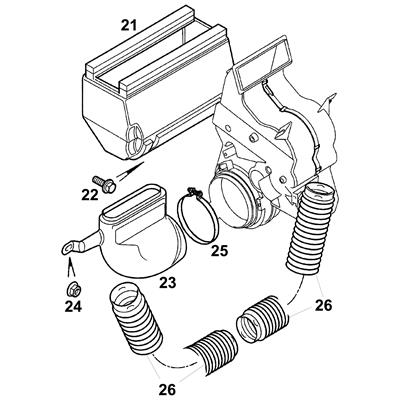

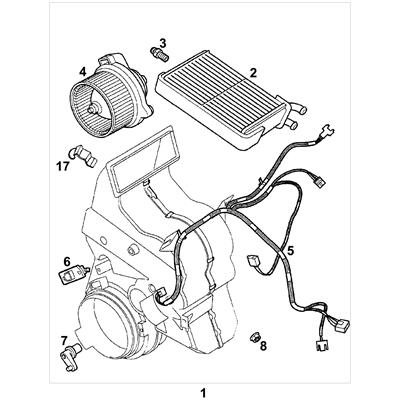

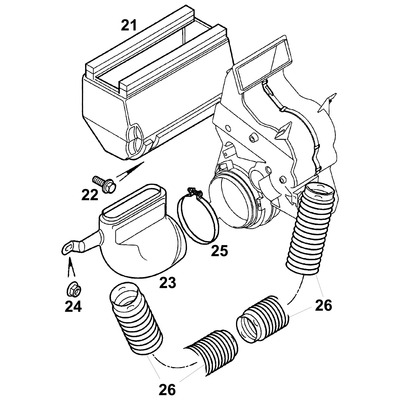

Heater Ducts & Hoses covers the ducting that carries air from the heater unit to the cabin vents, and the coolant hoses that feed the heater matrix. Heater hose specification differs by transmission type, automatic-transmission cars use an additional bypass hose in the heater circuit not fitted to manual cars, so the inlet and outlet hose assemblies are not common between manual and Stepspeed CVT applications. Heater Unit covers the heater matrix itself (the heat-exchanger core), the blower motor that moves air across it, the blower motor resistor that controls fan speeds, and the housing that contains them. Blower motor resistor failure, which typically leaves the fan working only on the highest setting, is the most common heater electrical fault.

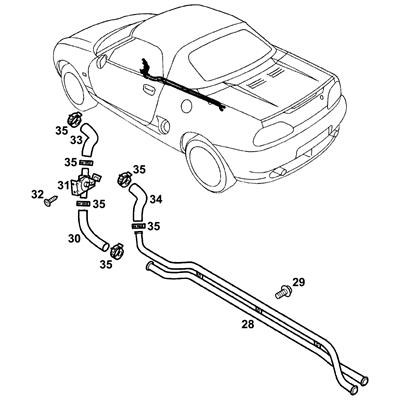

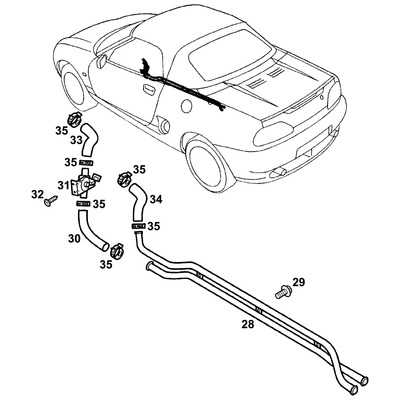

Heater Valve covers the valve that regulates coolant flow to the heater matrix and its operating mechanism. A sticking or seized heater valve produces either permanent cabin heat (stuck open) or no heat at all (stuck closed) and is a frequent service item on higher-mileage cars. Upgrades & Alternatives covers stainless steel heater pipe replacement kits for complete coolant-side renewal of the underfloor pipework, upgraded heater hose specifications, and other preventive alternatives to the original fitment.
