The MGA was supplied from factory with a Lucas dynamo, the pre-alternator generator that was universal on British cars until the mid-1960s. Three dynamo specifications were fitted during MGA production, and correct parts selection depends on the variant and chassis number. Many MGAs have since been converted to alternator charging for improved low-speed output and greater current capacity, and this node covers both the original dynamo architecture and the associated mounting hardware common to either installation.
Factory dynamo specifications
The original MGA dynamo is the Lucas C39PV-2, fitted to 1500 cars. A production change introduced the windowless yoke version of the C39PV-2 (without brush gear inspection windows) from engine number 15GB/487 during 1500 production. On the 1600 from engine number 16GA/6272, the dynamo changed to the Lucas C40-1 or alternatively the C40. The Twin Cam dynamo is the C39PV-2 design modified for the twin-cam engine.
All factory dynamos were originally painted red to match the engine colour, though replacement units are sometimes black.
Replacement and reconditioned dynamos
MGOC Spares stocks two main dynamo replacement routes. A new or reconditioned dynamo converted for negative earth operation is stocked as a direct replacement for cars that have been converted to negative earth (a common modern modification alongside alternator upgrades). A reconditioned original-specification dynamo is stocked on a core exchange basis, the customer returns their existing dynamo as a core, and MGOC supplies a reconditioned unit to the original factory positive-earth specification. Core exchange keeps the original unit in circulation rather than scrapping it.
Brush sets, variant-specific
Dynamo brushes wear during service and are routinely replaced during a rebuild or when charging becomes intermittent. Two brush sets are stocked: the C39 brush set suits the Lucas C39PV-2 fitted to 1500 and Twin Cam cars; the C40 brush set suits the Lucas C40-1 / C40 fitted to 1600 cars from engine number 16GA/6272 and to 1600 Mk II cars. The two sets are not interchangeable, the brush geometry and holder arrangement differ between the C39 and C40 designs, and fitting the wrong set will not allow the dynamo to charge properly.
Dynamo ancillaries

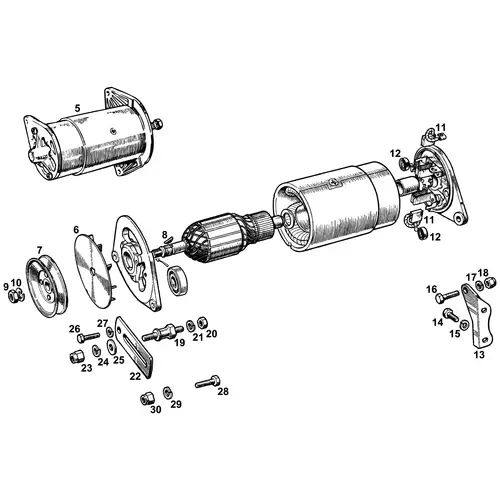

Several ancillary items are stocked for dynamo service and rebuild work. The dynamo cooling fan is the multi-blade fan mounted on the pulley shaft that draws cooling air through the dynamo casing during operation. The 2 5/8-inch dynamo pulley is the factory-specification pulley driven by the fan belt from the crankshaft. The Woodruff key locates the pulley correctly on the shaft. Associated locknuts, spring washers and nylocs are stocked in the correct UNF thread sizes for securing the pulley, mounting points and adjusting link.
Mounting and adjusting hardware, common to dynamo and alternator
The dynamo mounts to the engine via a rear mounting bracket and is tensioned against the crankshaft fan belt via an adjusting link pillar. MGOC stocks the adjusting link pillar as a shared item between dynamo and alternator installations, the standard mounting geometry carries over to alternator conversions, meaning an owner moving from dynamo to alternator can retain or replace this item as part of either specification. The mounting bracket, hex-head UNF screws (in 5/16 x 3/4 and 5/16 x 1 1/8 lengths), spring washers, nylocs and plain nuts cover the fixings needed for either installation.
Alternator upgrade
Modern alternator conversions offer advantages over the factory dynamo: much higher output at idle and low engine speeds, greater peak current for running modern lighting and accessories, better reliability in long service, and no separate control box required (alternators have internal regulators). An alternator conversion typically goes hand-in-hand with a switch from positive earth to negative earth, as most modern alternators are built for negative earth only. Specific alternator kits and negative-earth conversion components are covered under the Upgrades & Alternatives node.
Ordering considerations
Dynamo parts selection starts with the engine number to identify which dynamo type is fitted (C39 for 1500 / Twin Cam, C40 for 1600 / 1600 Mk II), so the correct brush set and any replacement unit matches. For a full replacement, the choice is between a reconditioned positive-earth dynamo (core exchange) or a new-built negative-earth dynamo (no core required). Mounting hardware, pulley, fan, Woodruff key and fixings are common service items that apply regardless of dynamo specification, and to alternator-converted cars using the factory mounting geometry.
