The heater matrix is the component that transfers heat from the engine coolant into the cabin air stream. On a car of this age, a blocked, scaled, or deteriorated matrix is one of the most common reasons for poor heater performance, as the internal passages fur up with scale and corrosion deposits over decades, reducing coolant flow and heat transfer progressively until the output becomes barely noticeable. MG heaters have a long-standing reputation for being somewhat ineffective, and the standard matrix is the primary limiting factor, as no amount of fan speed or heater valve adjustment can extract more heat than the matrix's surface area allows.
Improved Heat Output

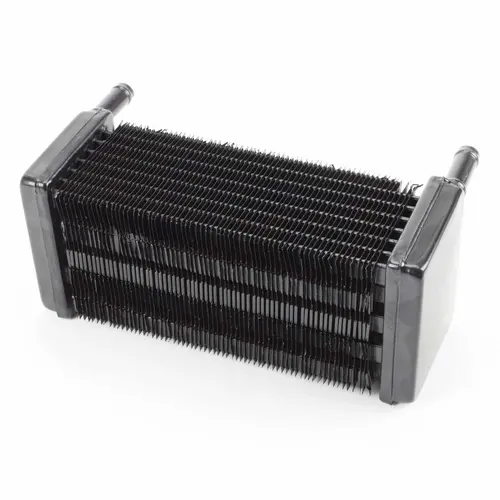

The high-efficiency matrix replaces the standard unit with an improved design offering better heat transfer, a denser core with more surface area allowing the coolant to transfer significantly more heat to the passing airstream within the same physical space. Simply replacing a failed matrix with a standard unit restores the original output, but the high-efficiency matrix goes further, and the increased output is immediately noticeable, making a genuine difference to cabin comfort during cold-weather motoring. It fits within the existing heater box using the same hose connections, making it a straightforward swap during any heater overhaul, and is the recommended choice whether the original has failed or the heater has always been marginal. Paired with the two-speed motor and large impeller kit, it forms the basis of a comprehensive heater upgrade.
MGC Compatibility Note
For early-type MGC heaters, up to chassis numbers 2063 Roadster and 2603 GT, slight modification to the matrix may be required to accommodate the water valve bracket that mounts directly to the heater casing on early cars. This is the same modification required with the standard replacement matrix and is straightforward for any competent workshop. Late-type heaters, from chassis numbers 2064 Roadster and 2604 GT onwards, accept the high-efficiency matrix without modification, as the water valve is mounted separately on the cylinder head.
