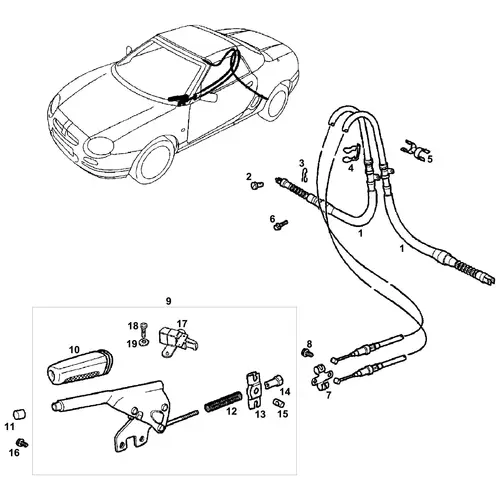

The handbrake is a conventional cable-pull arrangement acting on the rear disc brakes. A lever in the cabin pulls a primary cable rearward to an equaliser beneath the floor, which divides the pull evenly between a left-hand and right-hand secondary cable running to the rear of the car. Each secondary cable terminates at a lever on the outside of the rear caliper, and that lever actuates a mechanical mechanism inside the caliper body that forces the pads against the disc independently of the hydraulic circuit. The arrangement is entirely mechanical, it does not use fluid pressure, and therefore continues to hold the car securely even if the hydraulic braking system has lost pressure or if the battery is disconnected.
Handed Handbrake Cables, LH and RH
The two secondary handbrake cables are handed LH and RH and are catalogued as separate items rather than as a pair. Both cables are the same length but routed through different brackets and clips on opposite sides of the underfloor, and they are not interchangeable. A stretched or corroded handbrake cable is the most common cause of handbrake deterioration: the cable core stretches under repeated use, and water ingress past a damaged outer sheath corrodes the internal strands, producing both stretch and increased friction within the sheath. A cable that has reached the end of the adjustment range at the equaliser needs replacement rather than further adjustment.
Cable Clips, Fixings and Underfloor Routing
The handbrake cable is retained along its underfloor routing by a combination of small clips and screws. The handbrake cable clip (shared with other brake-hose routing applications, also used on MG ZR and ZS) is catalogued individually, typically fitted in pairs per side. M6 x 16mm zinc-plated flanged hex head screws are catalogued singly for the cable guide and brackets. These small fixings are easy to overlook but are worth renewing as a matter of course during a cable replacement, as the originals are often corroded after years of exposure to road spray.
Handbrake Lever Mounting
The handbrake lever mounts to the transmission tunnel via a pair of M8 x 20mm flanged hex head zinc-plated screws, catalogued individually. These are a dual-purpose fixing stocked for multiple locations on the car. The lever itself is catalogued as several distinct assemblies covering the production changes.
The original MGF lever was superseded at VIN 1D523408 by a revised assembly, which then carried through to the MG TF unchanged. The handbrake lever and grip are catalogued in plastic, leather, wood, and chrome finishes, with specific variants for the F Heritage option (Ash Grey leather grip) and the MG TF 80th Anniversary limited edition (black leather and chrome combination). Owners restoring to original factory specification should check their VIN and trim level against the catalogued lever options before ordering.
Equaliser, Adjusting Nut and Return Spring
The cable equaliser, the small pivoting bracket that balances tension between the two rear cables, is catalogued as an individual item, along with the equaliser pivot pin and a specialist handbrake adjusting nut that threads onto the primary cable rod. A return spring catalogued alongside these items helps return the lever to its rest position and keeps tension off the equaliser when the handbrake is released.
These parts are service items rather than routine replacements; they are renewed during a full handbrake rebuild or when a specific fault is diagnosed, a pull to one side when the handbrake is applied typically indicates an equaliser problem, while a lever that does not return smoothly often points to the return spring.
Handbrake Warning Light Switch
A dedicated switch mounted at the handbrake lever base illuminates the handbrake warning light on the dashboard whenever the lever is raised. The switch is catalogued as a single item with a pair of securing screws, and is a common failure point on high-mileage cars, a warning light that stays on regardless of lever position, or fails to illuminate when the handbrake is applied, usually indicates a failed switch or a misaligned securing screw rather than a hydraulic brake fault. The switch is also an MOT-relevant item: the warning light must be seen to function correctly during the MOT test.
Adjustment and Common Faults
Handbrake travel should hold the car securely on a moderate gradient with the lever raised to a modest angle rather than pulled hard against its stop. Excessive lever travel before the rear brakes bite indicates either cable stretch at the equaliser, worn rear brake pads, or seized mechanism within the rear calipers.
The first adjustment is always at the equaliser beneath the car, where the adjusting nut takes up cable slack. If the adjustment range is exhausted with the pads still in good condition, the cables are at the end of their life.
