MGF & TF Exhaust Manifolds

Exhaust > Manifolds > Exhaust Manifolds

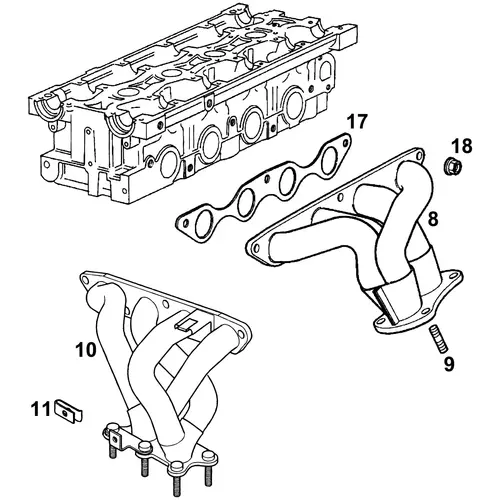

The MGF and MG TF exhaust manifold has two distinct flanged joints, each with its own fastener set that should be treated as consumables whenever the joint is disturbed. The upper joint clamps the manifold to the cylinder head, studs that are pre-fitted to the aluminium head pass through the manifold flange and are secured with self-locking nuts on top. The lower joint connects the manifold's bottom flange to the exhaust front pipe (downpipe), studs protrude from the manifold's lower flange into the downpipe flange, secured with separate nuts (catalogued with the downpipe on the Exhaust Systems & Components page). Each joint requires its own gasket, and replacing one joint's gasket does not mean the other joint has been attended to. This page carries the fitment components for both joints. Manifold-to-Head Gasket The manifold-to-head gasket is a common specification that fits MGF, MG TF, MG ZR, and MG ZS K-series applications, the manifold flange geometry is shared across the Rover Group K-series small-to-midrange range. The gasket is a multi-layer steel or composite design that withstands the sustained high temperatures of exhaust operation while maintaining a gas-tight seal under the clamping load of the head studs and nuts. Gaskets should always be replaced when the manifold is removed, a reused gasket at this joint produces a characteristic exhaust leak under hard acceleration (the gasket compression relaxes once disturbed, and the asymmetric load distribution of a reused gasket is rarely restored by refitting). An exhaust leak at the manifold-to-head joint produces a distinctive tapping or puffing noise under load and, over time, localised heat damage to adjacent wiring or hose routing. Manifold-to-Head Locking Nut The manifold-to-head locking nuts are M10 self-locking flanged nuts in zinc-plated specification. Five nuts are required per manifold, reflecting the five fixing positions where the head studs protrude through the manifold flange. The locking feature (a friction insert or deformed thread) maintains clamping force under the vibration and thermal expansion cycles of exhaust operation, which would otherwise loosen plain nuts over time. Like the gasket, the locking nuts should be treated as consumables, a reused self-locking nut has lost most of its locking function and will tend to back off over subsequent heat cycles. Five fresh nuts per manifold refit is the correct approach. Manifold-to-Downpipe Stud, Four-Stud Manifold The M10 studs for the manifold-to-downpipe joint are specifically for the four-stud manifold specification fitted to MGF 1800 models up to VIN YD522572. Four studs protrude from the lower flange of the 4-stud manifold, with the downpipe flange sliding over them and being clamped by its own nuts (separately catalogued). Owners of six-stud manifold cars (MGF 1800 from VIN YD522573, all MGF 1600, all MG TF) require a different stud specification for their six-stud flange, confirm which manifold type is fitted to the car before ordering these studs. The Manifold Stud Corrosion Problem A note that applies across both joints: steel studs in aluminium or cast iron exhaust components, subjected to decades of heat cycling, are prone to seizure. The head-side studs in the aluminium head can galvanically bond over time and become extremely difficult to remove; the downpipe-side studs in the cast iron manifold are subject to exhaust-side corrosion from moisture condensate combined with sulphur byproducts. Copper-slip anti-seize compound applied to every stud thread at refitting is essential preventive practice, and studs that extract without damage should be cleaned, inspected, and re-assembled with fresh compound rather than being reused blindly after heavy corrosion. Where head-side studs have to be extracted because of the manifold locking nut refusing to come loose, specialist tools and careful technique, or if the worst happens, a helicoil thread repair, are the path back to a serviceable head. This is the single most common reason an apparently straightforward manifold gasket replacement becomes a multi-day job. Ordering Approach For a routine manifold gasket replacement, the minimum consumable set is: one gasket, five locking nuts, and (if the downpipe has been disconnected at the manifold) the appropriate number of downpipe-side nuts and the downpipe gasket (catalogued on the Exhaust Systems & Components page). For a complete manifold removal, add the appropriate stud set for the downpipe flange. Owners undertaking this work for the first time should budget for a complete consumable refresh rather than trying to reuse original fasteners, the cost difference is marginal and the reliability difference significant.
