The MGF and MG TF use a conventional tandem-circuit brake hydraulic system with a vacuum-assisted servo, adapted to the specific challenges of a mid-engine layout. The driver's pedal effort acts on a pushrod into the servo, which uses engine vacuum drawn from the inlet manifold to multiply that effort. The servo's output pushrod acts on a tandem master cylinder, which converts the force into fluid pressure in two independent circuits. One circuit supplies the front calipers, the other supplies the rear, a conventional front-rear split.
Should one circuit fail, the other continues to function and the car retains partial, if diminished, braking. On ABS-equipped cars, the pressure from the master cylinder passes through the Bosch 5.3 ABS modulator before reaching the wheels, allowing the ABS unit to momentarily reduce pressure at any wheel sensed to be approaching lock-up.
The Mid-Engine Layout and the Long Pipe Runs
The brake master cylinder, servo, and brake fluid reservoir all sit at the front of the car in the conventional position, directly ahead of the driver's bulkhead, while the engine is 1.5 metres further back behind the cabin. This layout keeps the pedal feel familiar and puts the fluid reservoir somewhere the owner can actually see, but it also means the rear brake pipes run the full length of the underside of the car. These long pipe runs pass close to the coolant pipes, which run from the front-mounted radiator to the mid-mounted engine, and share the same exposure to road spray, water, and grit. Brake pipe corrosion is a standard MOT failure point on older MGFs and TFs for exactly this reason, and a full set of copper or stainless replacement pipe kits, catalogued on the Brake Upgrades page, is a worthwhile preventive rather than a repair-driven job.
The Clutch Hydraulic System Shares the Fluid but Not the Circuit
The clutch is hydraulically actuated on all manual MGF and MG TF cars, using a dedicated master cylinder and slave cylinder with its own fluid line. The clutch system is entirely separate from the brake circuit, there is no fluid interchange and no shared pressure, but it uses the same specification of brake fluid and is bled using the same technique. For that reason, the Clutch & Brake Fluid category is presented alongside the brake hydraulics on this landing page. Clutch hydraulic components themselves are catalogued under Clutch, Gearbox & Drivetrain rather than here.
Which Child Page to Choose

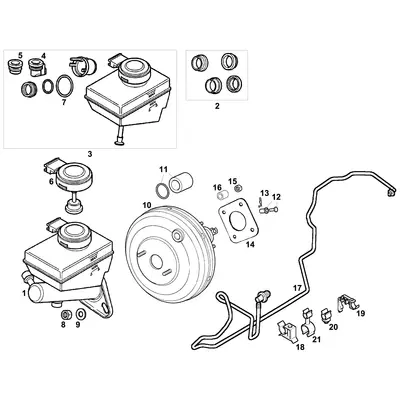

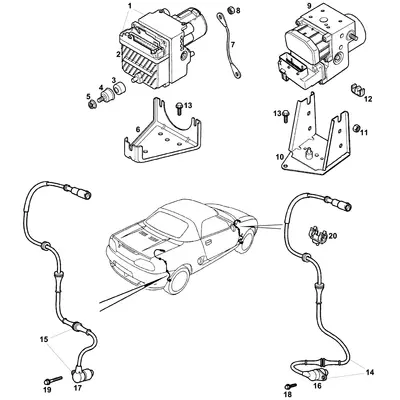

Master Cylinder & Servo covers the tandem brake master cylinder, the fluid reservoir and cap (including the integral low-fluid-level switch on later specifications), seal kits, the vacuum servo, the servo-to-inlet-manifold hose and non-return valve, and the servo-to-body mounting hardware. Production-change detail for master cylinder and servo variants, including the MY2005 servo breakpoint, is covered on this page. Anti Lock Brakes (ABS) covers the Bosch 5.3 ABS modulator unit, the ABS ECU, wheel speed sensors (noting that MGF and MG TF front sensor brackets differ), reluctor rings, and the ABS modulator mounting bracket with its Mk1/Mk2 production change. ABS diagnostic guidance and common fault patterns are on this page.

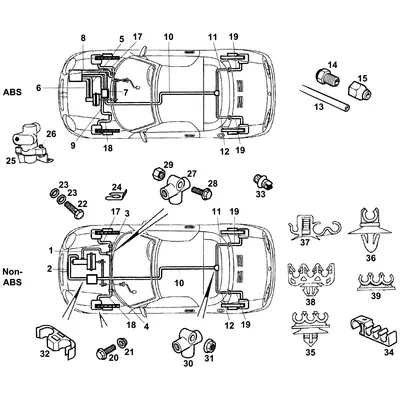

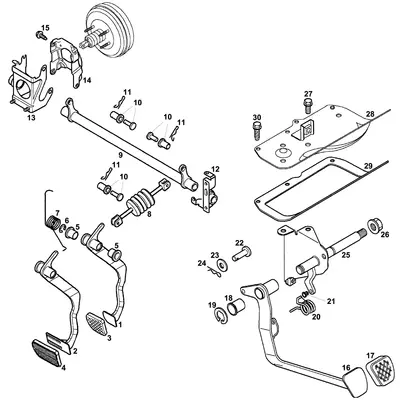

Brake Lines covers the steel brake pipes, unions, hose-to-pipe connections, and mounting clips that make up the fixed portion of the hydraulic circuit. Flexible brake hoses between the body and the wheel assemblies are on this page, with stainless braided upgrades on the Brake Upgrades & Alternatives page. Brake & Clutch Pedals covers the pedal box assembly, the brake and clutch pedal arms with their bushes and pivot pins, and the associated fixings. The pedal box saw a production change at VIN YD 514326 with specification differences between RHD and LHD markets, details and ordering guidance are on this page.
Clutch & Brake Fluid covers the brake fluid choices for the MGF and MG TF, DOT 4 specification as original, with Castrol's classic range included. Note that silicone (DOT 5) brake fluid is not compatible with ABS-equipped cars and is only appropriate for the small minority of early MGFs without ABS when the system has been thoroughly flushed. Full fluid selection guidance is on this page. Upgrades & Alternatives is the Brakes upgrades page, cross-linked from here because most hydraulic upgrades (braided brake hoses for firmer pedal feel, copper replacement brake pipe kits, stainless ABS mounting brackets, servo braces) naturally belong to the Hydraulics section even though they share the page with pad and disc upgrades
